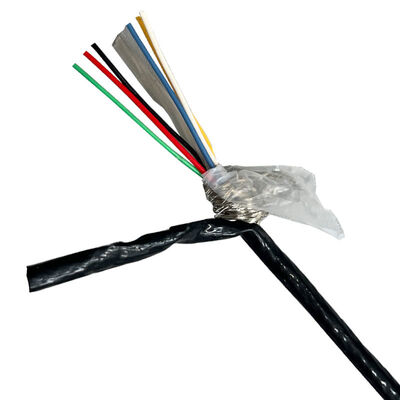

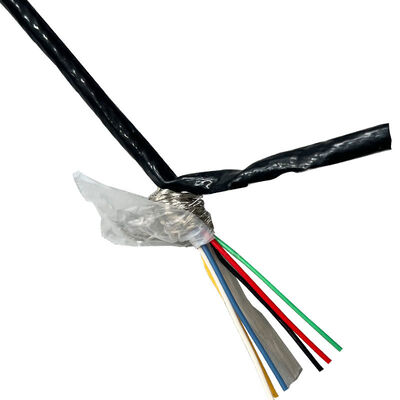

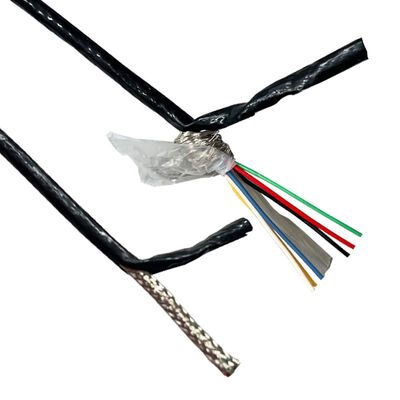

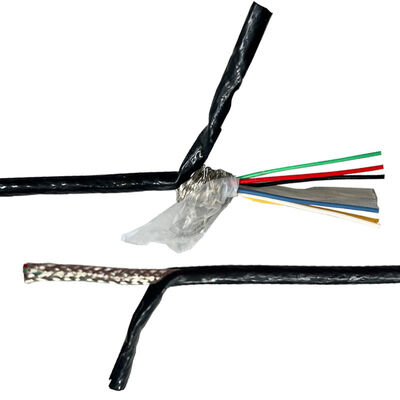

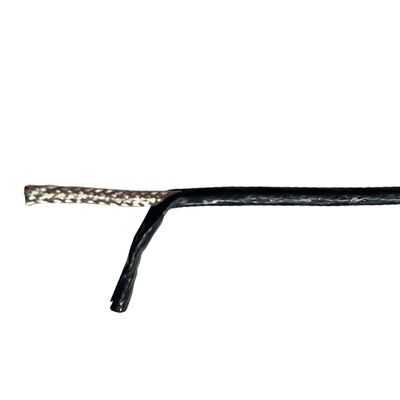

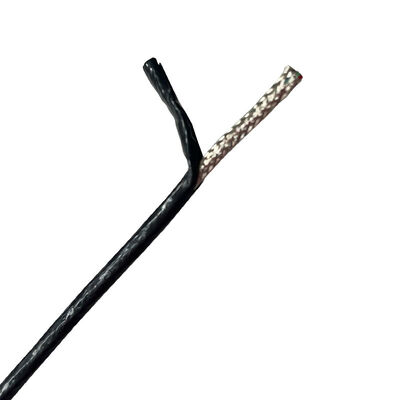

6x26AWG Silver Plated Copper Tefzel Shielding Cable
ETFE Insulated Wire is engineered using advanced ETFE (Ethylene Tetrafluoroethylene) material, which provides exceptional thermal and electrical insulation properties. This makes it an ideal choice for use in high-temperature environments where traditional wire insulation materials may fail.
Our ETFE Insulated Wire withstands extreme temperatures from -200°C to 150°C without compromising structural integrity or electrical performance. Suitable for aerospace, automotive, and industrial manufacturing applications where exposure to harsh operating conditions is common.
In addition to thermal resilience, ETFE Insulated Wire offers excellent resistance to chemicals, oils, and solvents, ensuring long-term durability and reliability in challenging environments.
Engineered to meet stringent safety standards, this wire delivers consistent electrical performance with low dielectric constant and high dielectric strength, ensuring reliable power transmission and signal integrity.
Key Features
- Small diameter saves space
- Excellent electrical characteristics, mechanical strength, heat resistance, chemical resistance, and flame resistance
- Superior low temperature characteristics
- Higher tensile and impact strength than PTFE with greater dielectric strength and radiation resistance
Cable Specifications
| Conductor Materials |
Tinned Plated Copper or Silver Plated Copper |
| Conductor Type |
Stranded or Solid |
| Number Core |
1 Core, 2 Cores, 3 Cores, 4 Cores... |
| Insulation |
FEP, PFA, PTFE, ETFE Insulated |
| Sheath |
TPU Jacket |
| Rated Voltage |
600V or Below |
| Rated Temperature |
-65°C to +200°C |
| Color |
White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green... |
Product Types
| Type |
Name |
| AF-200 |
Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 |
Tin Plated Copper Core FEP Insulation Install Wire |
| AFP-200 |
Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 |
Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 |
Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
Cable Structures
| Wire Gauge |
Cross-section Area |
Conductor Structure |
Max. OD of Cable |
| 36AWG |
0.013mm² |
7/0.05 |
0.65 | 0.85 | 1.1 | 1.3 |
| 32AWG |
0.035mm² |
7/0.08 |
0.75 | 0.95 | 1.2 | 1.4 |
| 30AWG |
0.05mm² |
7/0.10 |
0.85 | 1.05 | 1.35 | 1.6 |
| 28AWG |
0.07mm² |
7/0.12 |
0.9 | 1.1 | 1.4 | 1.65 |
| 26AWG |
0.14mm² |
7/0.16 |
1.1 | 1.3 | 1.65 | 1.95 |
| 24AWG |
0.2mm² |
19/0.12 |
1.2 | 1.4 | 1.75 | 1.98 |
| 22AWG |
0.35/0.40mm² |
19/0.16 |
1.4 | 1.6 | 1.95 | 2.2 |
| 20AWG |
0.5mm² |
19/0.18 |
1.6 | 1.8 | 2.2 | 2.4 |
| 18AWG |
1mm² |
19/0.26 |
2 | 2.2 | 2.6 | 2.9 |
| 16AWG |
1.2mm² |
19/0.28 |
2.2 | 2.4 | 2.8 | 3.1 |
| 14AWG |
2mm² |
19/0.37 |
2.7 | 2.9 | 3.4 | 3.6 |
| 12AWG |
3mm² |
37/0.32 |
3.6 | 3.8 | 4.4 | 4.6 |
| 10AWG |
5mm² |
37/0.41 |
4.5 | 4.7 | 5.3 | 5.6 |
| 8AWG |
8mm² |
133/0.28 |
6 | 6.5 | 6.8 | 7.3 |
Note: FEP high temperature lead wire specification and core number are not limited to above regulation and can be customized.
Company Information
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military with 21 years of experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive pricing for global customers.
Our main products include: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and more. We have advanced production facilities and integrated management systems, plus strong cooperation with universities and research institutes. We can customize cables according to customer requirements.
Exhibition & Visits
In past years, we participated in the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, Power-Gen India and other international events.
As a professional wire and cable manufacturer, Xiangtan Shenzhou Special Cable Co., LTD has exported products to US, Venezuela, India, Vietnam, Bengal, Africa and other countries. We welcomed the delegation from Ezeagu Government of Nigeria to our factory in 2017, who are long-time partners.
Certifications & Honors
- Participated in China manned space flight project development, construction and related cooperation for Shenzhou 7 manned space flight
- Carried out project development, construction and test tasks for China's first manned flight
- Collaborated with China Academy of Launch Vehicle Technology Institution on the "Arrow of God" project for China's astronaut outer space exploration
Why Choose Us
- Free technical consultation service before, during, and after sales
- Free sample and design services
- Special monitoring and detection services during manufacturing process
- 100% free insurance for internal transportation
- OEM & ODM welcome
- Small orders accepted
Packing & Shipping
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer, researching, developing and selling military and consumer cable wire and cable compound. The company is located in Hunan Province, China.
Q: What is your company's strengths?
A: We are a stable wire and cable supplier of China's aerospace and military with 21 years experience. Cable compounds are produced by ourselves, enabling superior quality and competitive offers.
Q: How do you guarantee your product quality?
A: Quality is our priority. We implement strict quality control from design and materials procurement through manufacturing, semi-finished product testing, and finished product inspection.
Q: What's the warranty of your products?
A: We provide 1 year complete warranty service. If products have quality problems, we will replace or return unconditionally.
Q: How can I get the samples?
A: We can make sample orders. If sample quantity is small and available in stock, we can provide them free with freight absorbed by the customer.
